| Mainboard (Bo mạch chủ) | GIGABYTE |
| Hãng sản xuất | GIGABYTE |
| Model | B660M DS3H DDR4 (rev. 1.0) |
| Kích Cỡ | Micro-ATX |
| CPU Socket | LGA1700 |
| Chipset | Intel® B660 Express Chipset |
| Số Khe Ram | 4 |
| Dung Lượng Ram Tối Đa Hỗ Trợ | 128GB |

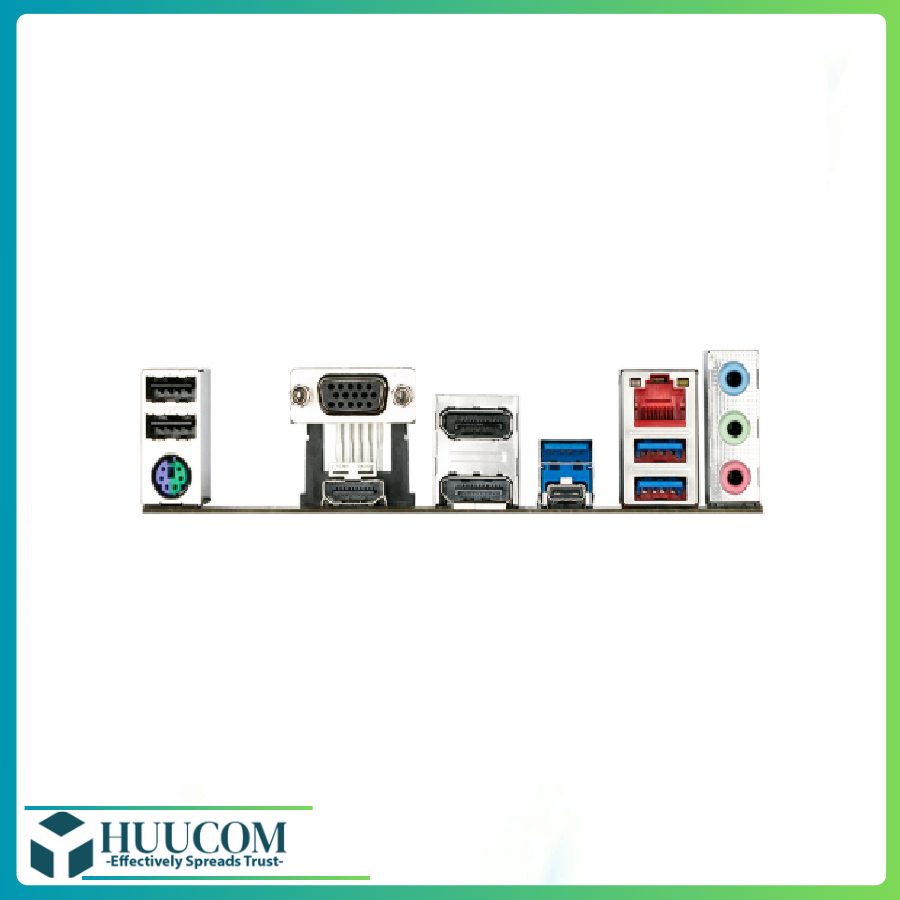

| Cổng I/O Phía Sau | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Cổng Kết Nối Khác | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
